Duravit Wave Single-lever washbasin mixer S
with FreshStart function - drain fitting selectable
Product number: 170949
Product number: 170948
Product information

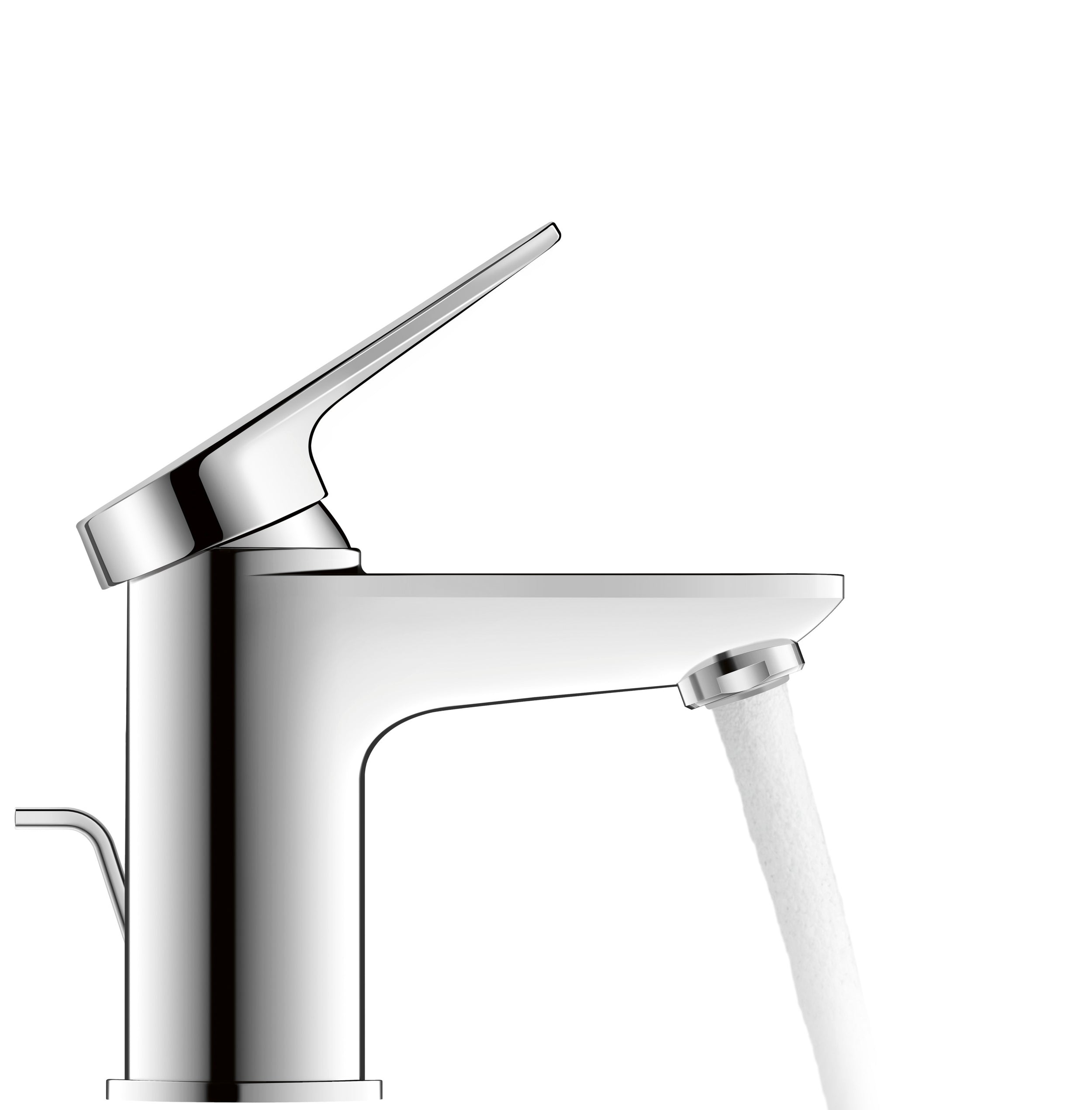

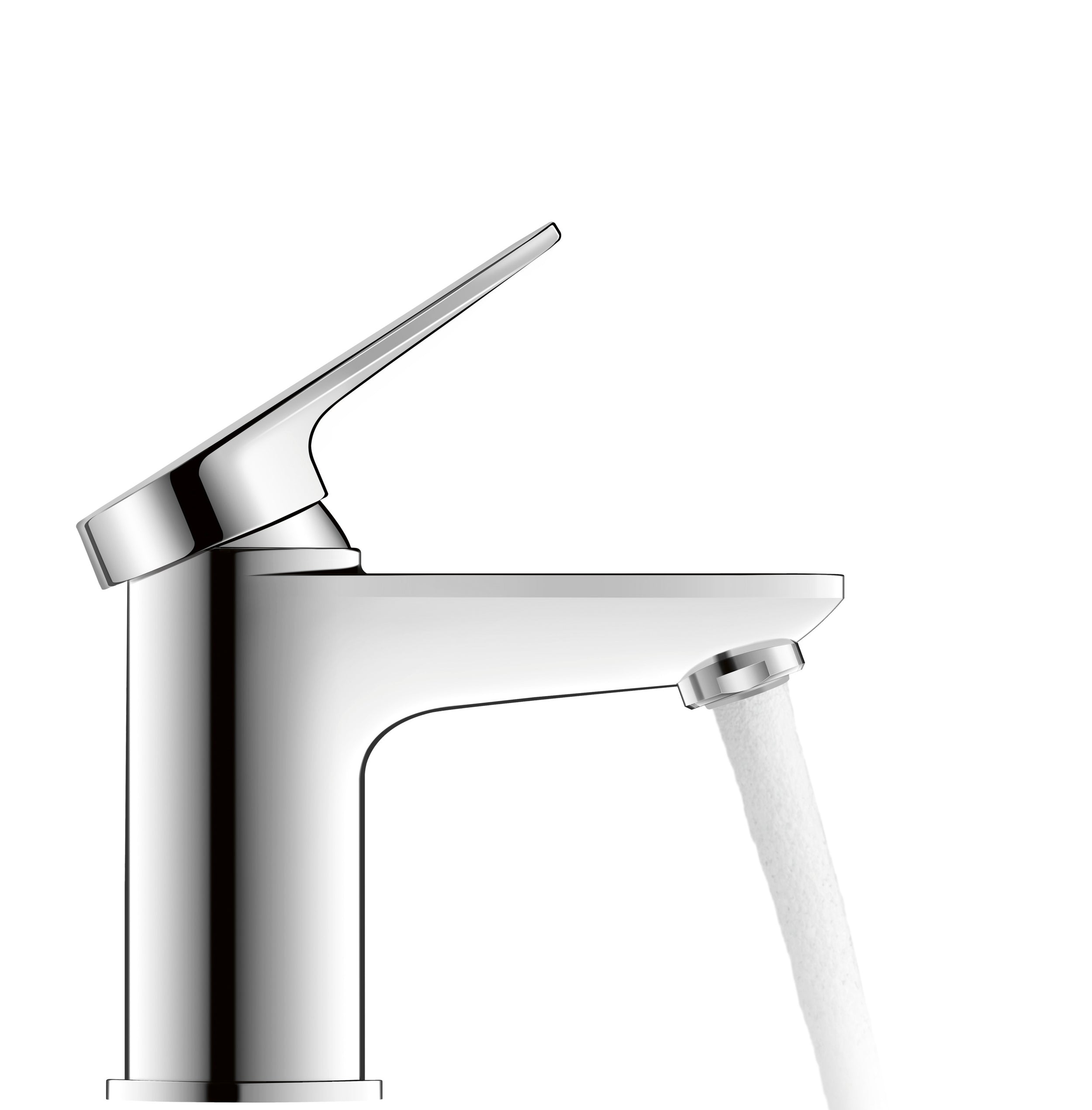

Duravit Wave single-lever basin mixer S with energy-saving FreshStart function Chrome High Gloss - drain fitting selectable
The fittings of the Wave series combine modern design and functionality. This model with its rounded spout and precise edges blends perfectly into any bathroom ceramic. The classic, shiny chrome surface fits into any bathroom.
This basin mixer tap is equipped with the FreshStart function: When the tap is in the middle position, only cold water flows. Hot water is only supplied when the handle is moved to the left. The energy-intensive hot water production is thereby limited to situations where it is actually needed. The slightly upward-angled handle sits comfortably in the hand and is easy and precise to use. The AirPlus technology also helps save water. The water is enriched with air, providing a pleasantly soft and full water stream. With the EasyClean cleaning system, dirt and limescale deposits can simply be wiped away with your finger.
Flexible connection hoses (3/8 inch) enable easy connection to existing water connections (connection size DN15). By selecting a product variant, you can choose between a version with or without drain fitting. If you choose the version with drain fitting, you will receive a fitting with integrated pull rod, which makes opening and closing the basin easier. You also receive a five-year warranty on this durable and reliable product.

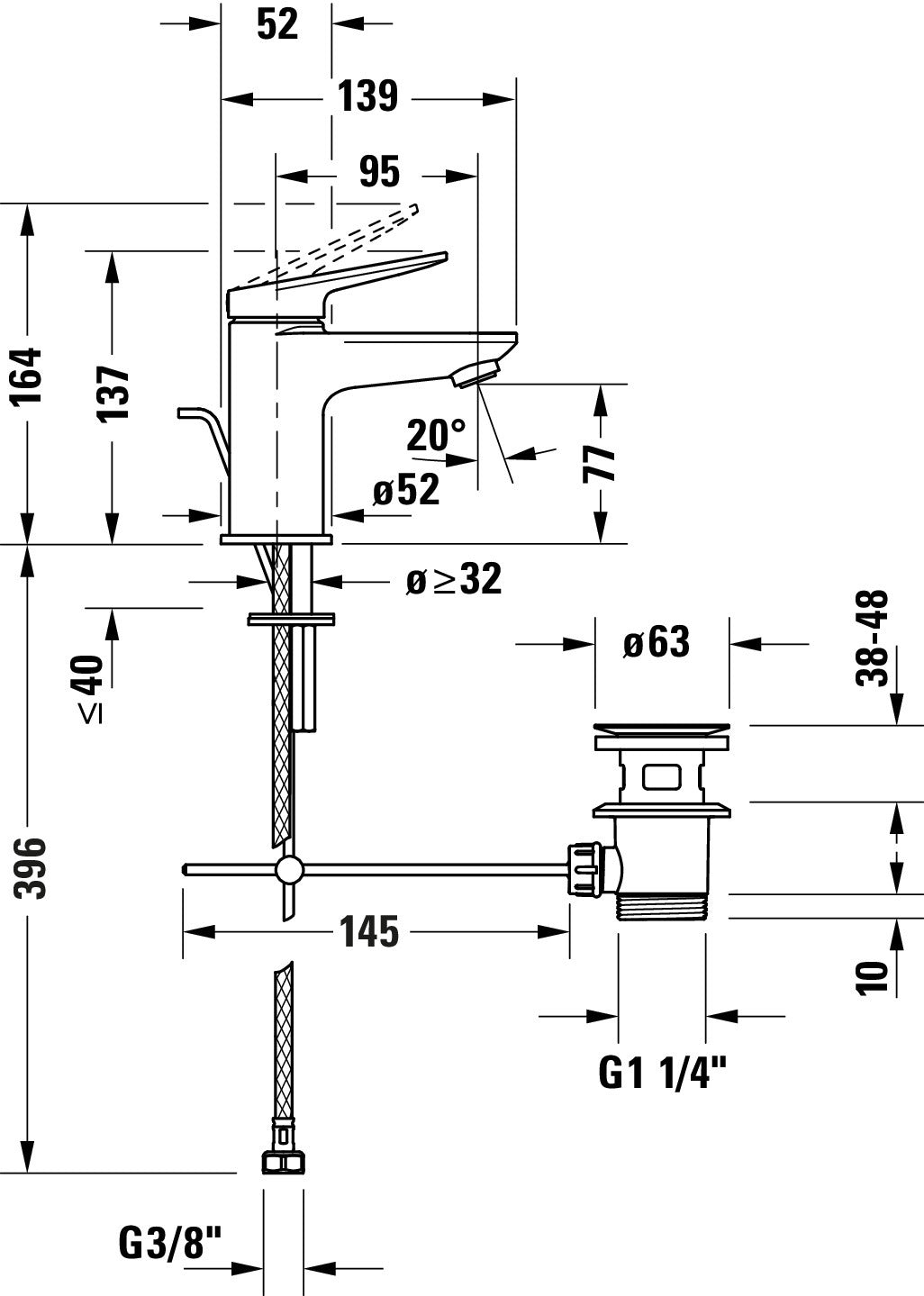

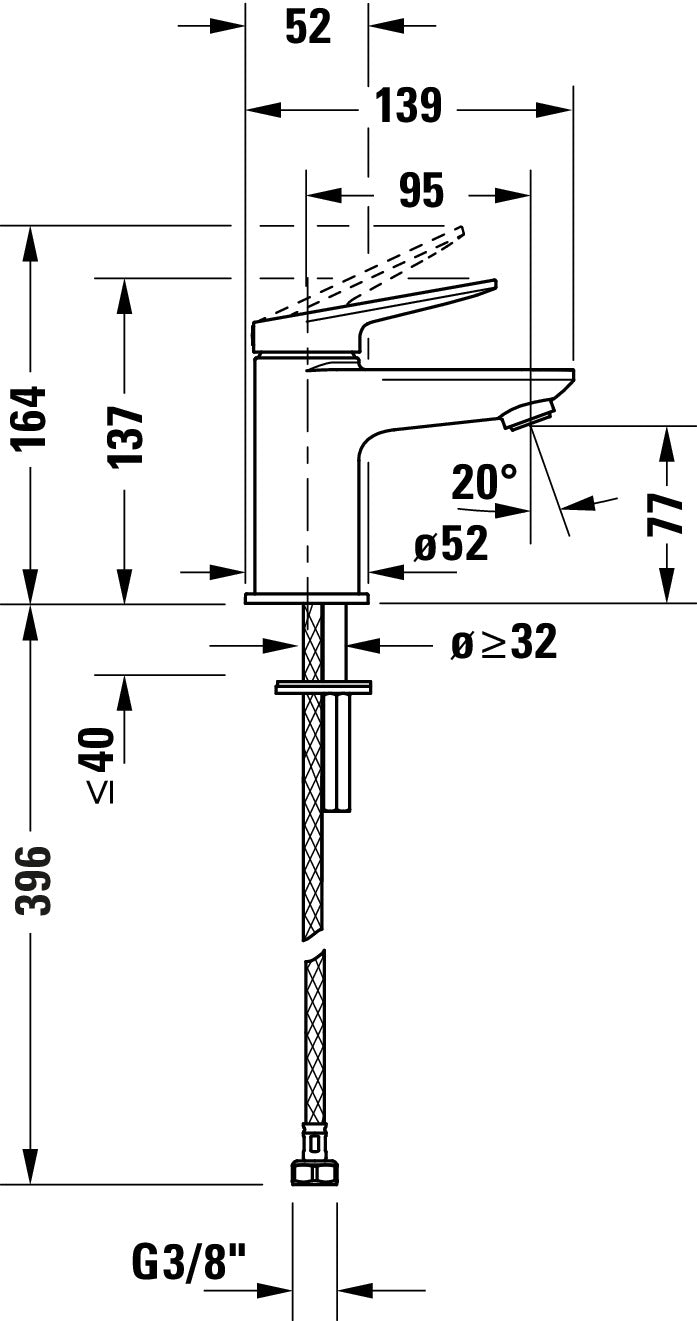

Dimensions and specifications
Material | Brass |
Colour | Chrome |
Gloss level | High gloss |
Dimensions (W x H x D) | 5.3 x 13.7 x 13.9 cm |
Waste set selectable | With | Without |
Jet type | AirPlus, normal jet |
Spout | Flow straightener with EasyClean |
Spout type | Rigid |
Temperature control | Ceramic mixing system |
Connection size water connection | 3/8" |
Connection type water connection | Flexible connection hoses |
Flow rate (3 bar) [l/min] | 5 |
Min. recommended operating pressure (bar) | 1 |
Max. recommended operating pressure (bar) | 5 |
Mounting type | Surface mounting |
Suitable for continuous-flow water heater | Yes |
Scope of delivery
- Washbasin fitting Wave size S – optionally with or without waste set
- Mounting material
- Installation instructions
Downloads
Assembly instructions
Duravit_MI_3064088.pdfCare instructions
Duravit_CI_3100187.pdfOther instructions
dur_5_jahre-garantie_5-years-warranty.pdf
